LED Lights Singapore - VTX Solutions





LED T8 Tubes

1) VTX LED T8 Tubes with Sensor

 How it Works

1. When a moving object approaches the installation

and the distance reaches within 4M, the tube will light up

automatically to100% brightness.

 2. When the moving object leaves the installation

after 30 second, the tube will automatically adjust to

20% or 0% brightness (option to be decided when

placing order) so that it can save energy.





so that it can save energy.





Power Consumption (W)

Luminous Flux (Lm)

2 ft-tube

4 ft-tube

2 ft-tube

4 ft-tube

100% brightness



10

20

630

1350

20% brightness

0% brightness

2

0.5

4

0.5

130

0

280

 0

 Features

* Indoor use only

* 60%~80%  energy saving

* No UV or IR radiation

 * Produces cool light which reduces the rise of ambient temperature.

* Environmentally  friendly

Specifications

Model No.



2F20 (20% light)

2F00 (0% light)

4F20 (20% light)

4F00 (0% light)

CCT (Typical)



6000 K

Typical Power Consumption



9 W

19 W

Typical Luminous Flux (lm)



630 lm

1,350 lm

Input Voltage



100-240V AC

Frequency



50 Hz / 60 Hz

Socket Base



G13

Operating temperature

-20°C ~ +40°C

Typical Luminous Efficacy



70 lm/W

71 lm/W

CRI



> 60

Beam Angle



120°

Cover



Frosted / Clear

Applications



Indoor parking lots, Commercial lighting, Public places lighting

Dimension



2-feet Type :Ψ30.5*590 (mm)

4-feet Type:Ψ30.5*1198 (mm)

Net. Weight



0.27Kg

0.47Kg

Warranty



2 years

 * Product of Taiwan

 Installation Guide

1. Standard accessories installation

2. Fluorescent ballast assembly

3. Electronic ballast assembly



2) FZLED LED T8 Tubes

FZLED T8 Tube is one of the brightest LED tubes available in the market at 1700 lumens (4ft cool white) and 850 lumens (2ft Cool White). It not only complies with CE and RoHS but also passed the stringent FCC, ETL and TUV quality tests.  It is indeed a high-quality product that is value for money.

 • Samsung or Liteon LED

Power consumption up to 12W (2 feet tube) and 22W (4 feet tube)

Base: G13

• No starter needed

• No need to remove traditional Ballast

• CE, FCC, ETL, TUV and RoHS Approved

• Brand: FZLED

• 3 Years Warranty

• Product of Taiwan



Samsung LED Tube

Model

FZL-T8-02-WW-12

FZL-T8-02-CW-12

FZL-T8-02-WW-22

FZL-T8-02-CW-22

 LED
Samsung SMD (Patent)
 Housing
Plastic
 Power Consumption
12W
22W
 Input Voltage

AC 90 - 264V

 Socket
G13
 Operation Temperature
-20°C — +40°C
 CCT
3000K
6000K
3000K
6000K
 Luminous Flux (lm)
700 (±10%)
 918 (±10%)
 1360 (±10%)
1750 (±10%)
 CRI
>80
>70
>80
>70
 Beam Angle
120°
 Dimension (mm)

2 feet – Type 1: Ø30 X 580
2 feet – Type 2: Ø30 X 600

4 feet: Ø30 X 1198

 Net. Weight (Kgs)
0.216 (±10%)
0.432 (±10%)



Liteon LED Tube

Model
FZL-T8-04-WW-12

FZL-T8-04-NW-12

FZL-T8-04-CW-12
FZL-T8-04-WW-22

FZL-T8-04-NW-22

FZL-T8-04-CW-22

 LED
Liteon SMD
 Housing
Plastic
 Power Consumption
12W
22W
 Input Voltage

AC 90 - 264V

 Socket
G13
 Operation Temperature
-20°C — +40°C
 CCT
3000K
4000K
6000K
3000K
4000K
6000K
 Luminous Flux (lm)
650 (±10%)
710 (±10%)
 850 (±10%)
1300 (±10%)
1450 (±10%)
 1700 (±10%)
 CRI
>80
>80
>75
>80
>80
>75
 Beam Angle
120°
 Dimension

2 feet – Type 1: Ø30 X 580 (mm)
2 feet – Type 2: Ø30 X 600 (mm)

4 feet: Ø30 X 1198 (mm)

 Net. Weight (Kgs)
0.216
0.432

Installation Guide

1) Turn off light during installation and uninstallation.

2) Confirm that the input power is AC 90 - 264 V.

3) Remove the starter.

4) Check to make sure that the ballast is a traditional magnetic ballast.

    FZLED tubes cannot be installed with electronic ballast.

5) Install FZLED tube and then turn on the light.



MR16 LED

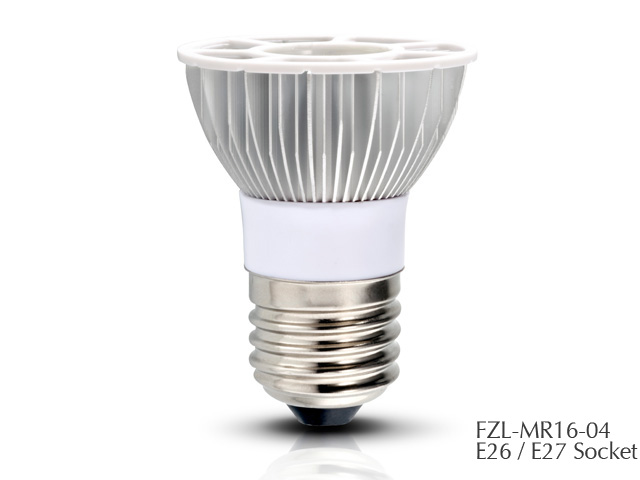

1) FZLED MR16 3W, 3.6W and 5W

FZLED MR16 uses CREE LED with high CRI that produces vibrant colour very similar to traditional halogen light without the adverse effects of heat and high energy consumption.

• Cree LED

• Non-Dimmable or Triac Dimmable

Power consumption: 3W, 3.6W and 5W

Input Voltage: 12V AC/DC or  AC 220 - 240V

Colour: 3000K (warm white) or 6000K (white)

CRI: 80 (warm white), 75 (white)

Beam angle: 10 deg, 15 deg, 25 deg, 40 deg, 60 deg

Flux for 3W: 120 lumens (warm white),  160 lumens (white)

   Flux for 3.6W: 180 lumens (warm white),  230 lumens (white)

   Flux for 5W: 250 lumens (warm white),  300 lumens (white)

Base: GU5.3/GU10/E11/E14/E17/E26/E27/B22

Dimension: 50mm (diameter) x 51mm (length)

Weight: 25g

• CE, FCC, ETL and RoHS Approved

• Replacement for MR16 Halogen lamps

• Application: accent lighting, cabinet display, work, dining, living area, etc.

• Brand: FZLED

• 18 months Warranty

• Product of Taiwan





2) VTX MR16 5W PLUS

VTX MR16 5W PLUS  uses CREE LED with high CRI. It is exceptionally bright at 370 lumens and illuminance of 1500 lux at 1 m for white colour, and 280 lumens and 1200 lux at 1m for warm white.

• Cree LED

• Non-Dimmable

Power consumption: 5W

Input Voltage: 12V DC

Colour: 3000K (warm white) or 6000K (white)

CRI: 80 (warm white), 75 (white)

Beam angle: 24 deg

Flux: 280 lumens (warm white),  370  lumens (white)

Illuminance at 1 m: 1200 lux (warm white), 1500  lux (white)

Base: GU5.3

Dimension: 50mm (diameter) x 50mm (length)

• CE, RoHS and UL Approved

• Replacement for MR16 Halogen lamps

• Application: accent lighting, cabinet display, work, dining, living area, etc.

• 18 months Warranty (using compatible driver provided by VTX Solutions)

• Product of Taiwan



3) VTX MR16 5W Black

VTX MR16 5W Black has high CRI and good heat dissipation design.

• Liteon LED

• NonDimmable

Power consumption: 5W

Input Voltage: 12V AC/DC

Colour: 3000K (warm white) or 6000K (white)

CRI: 85 (warm white), 75 (white)

Beam angle: 25 deg

Flux: 250 lumens (warm white),  300 lumens (white)

Illuminance at 1 m: 950 lux (warm white), 1500  lux (white)

Base: GU5.3

Dimension: 50mm (diameter) x 51mm (length)

Weight: 40g

• CE, RoHS and UL Approved

• Replacement for MR16 Halogen lamps

• Application: accent lighting, cabinet display, work, dining, living area, etc.

•1 Year Warranty

• Product of Taiwan





4) VTX MR16 4W Superbright

VTX MR16 4W Superbright gives out exceptionally bright light at 1500 lux at 1m for white and 1300 lux  for warm white. It is also very affordably priced.

• NonDimmable

Power consumption: 4W

Input Voltage: 12V AC/DC

Colour: 3000K (warm white) or 6000K (white)

CRI: 65 (warm white), 60 (white)

Beam angle: 25 deg

Flux: 180 lumens (warm white),  200 lumens (white)

Illuminance at 1 m: 1300 lux (warm white), 1500  lux (white)

Base: GU5.3

Dimension: 50mm (diameter) x 53 mm (length)

Weight: 55g

• CE, Approved

• Replacement for MR16 Halogen lamps

• Application: accent lighting, cabinet display, work, dining, living area, etc.

•1 year Warranty

• Product of China







MR11 LED

Our MR11 uses CREE LED with high CRI. It is highly reliable and superbly designed.

• Cree LED

Power: 2.4 W

Colour: 2700-3050K (warm white) or 5600-6400K (day white)

CRI: 80 (warm white), 75 (day white)

Flux: 90 lumens (ww), 120 lumens (dw)

Illuminance at 50 cm:

   10000 lux (8 deg,ww),  1470 lux (25 deg,ww) or 415 lux (45 deg,ww)

   15000 lux (8 deg,dw),  2000 lux (25 deg,dw) or 570 lux (45 deg,dw)

Beam angle: 8 deg, 25 deg, 45 deg

Base: GU 5.3

Input Voltage: 12V AC/DC

Dimension: 35mm (diameter) x 42mm (length)

Weight: 31g

• CE and RoHS Approved

• Replacement for MR11 Halogen lamps

• Application: accent lighting, cabinet display, etc.

• 2 Years Warranty

• Product of Taiwan



AR111 LED

1) VTX AR111 nine-leds

VTX AR111 with nine leds,  at 760 lumens (for warm white) is a true replacement of 75W halogen lamps.

It uses CREE Leds with high CRI and has a reliable built-in driver.

• CREE LED

Power: 13 W

Colour: 2700-3050K (warm white)

CRI: 80 (ww)

Beam angle: 14 deg

Field angle: 28 deg

Flux: 760 lumens (ww)

Illuminance at 1 m: 7850 lux (ww)

Illuminance at 2 m: 1960 lux (ww)

 • Base: G 53

Input Voltage: 12V AC/DC

Dimension: 111mm (diameter) x 49mm (length)

Weight: 205g

• CE and RoHS Approved

• Replacement for 75w AR111 Halogen lamps

• Application: accent lighting, commercial lighting, etc.

• 2 Years Warranty

• Product of Taiwan



2) VTX AR111 six-leds

VTX AR111 with six leds is a replacement for 50W halogen lamps. It surpasses the brightness of other 11W AR111 led lamps in the market and has high CRI.

• Semileds LED

Power: 11 W

Colour: 2700-3000K (warm white)

               4000-4300K (natural white)

               5300-6000K (day white)

CRI: 80 (ww), 75 (nw and dw)

Beam angle: 18 deg or 32 deg

Flux: 600 lumens (ww), 700 lumens (nw), 800 lumens (dw)

Illuminance at 1 m: 2900 lux (18 deg ww), 3210 lux (18 deg nw), 3650 lux (18deg dw),

                                   1600 lux (32 deg ww), 1760 lux (32 deg nw), 2000 lux (32 deg dw)

Base: G 53

Input Voltage: 12V AC/DC

Dimension: 111mm (diameter) x 49mm (length)

Weight: 200g

• CE and RoHS Approved

• Replacement for 50W AR111 Halogen lamps

• Application: accent lighting, commercial lighting, etc.

• 2 Years Warranty

• Product of Taiwan



3) VTX AR111 single led

VTX AR111 single led uses CREE LED with high CRI. It caters to consumers who prefer single led instead of multiple LEDS within the lamp.

• CREE LED

Power: 15 W

Colour: 3000K (warm white), 6000K (white)

CRI: 80 (ww), 70 (w)

Beam angle: 15 deg or 24 deg

Flux: 430 lumens (ww), 560 lumens (w)

Illuminance at 1 m: 4000 lux (15 deg, ww), 5800 lux (15deg, w)

                                   1900 lux (24 deg, ww), 2300 lux (24 deg, w)

Base: G 53

Input Voltage: 12V- 24V DC

Dimension: 111mm (diameter) x 54.5mm (length)

Weight: 150g

• CE, RoHS and UL Approved

• Replacement for 50W AR111 Halogen lamps

• Application: accent lighting, commercial lighting, etc.

• 2 Years Warranty (using compatible driver provided by VTX Solutions)

• Product of Taiwan





PAR20 LED

FZLED PAR 20 uses high quality CREE or Samsung LED and produces satisfactory brightness for replacement of up to 60 W halogen PAR  light or bulb.

• Samsung or CREE LED

• Non-Dimmable or Triac dimmable

Power consumption up to 7W or 9W

Lens: Clear or Frosted

Input Voltage: 100-264 V AC

Colour: 3000K (warm white) or 6000K (white)

CRI: 80 (warm white), 75 (white)

Flux: 300 lumens (ww, samsung 7W), 400 lumens (w, samsung 7W)

            380 lumens (ww, CREE 7W), 450 lumens (w, CREE 7W)

            400 lumens (ww, samsung 9W), 500 lumens (w, samsung 9W)

            500 lumens (ww, CREE 9W), 600 lumens (w, CREE 9W)

Illuminance at 1m:  280 lux (ww samsung 7W clear lens),  322 lux (w samsung 7W clear lens)

Beam angle: 55 deg or 120 deg

Base: GU10 / E26 / E27 / B22

Dimension for 7W PAR20: 63mm (diameter) x 95mm (length); Weight: 115g

Dimension for 9W PAR20: 63mm (diameter) x 103mm (length); Weight: 135g

• CE, FCC, ETL and RoHS Approved

• Replacement for PAR Halogen lamps or bulbs

• Application: accent lighting, commercial lighting, spotlighting,  etc.

• Brand: FZLED

• 2 Years Warranty

• Product of Taiwan



PAR30 LED

1) FZLED PAR 30

FZLED PAR 30 is stylishly designed and can be used on its own without the need for fixtures. It comes with an option of switching dimmable function which eliminate the need for an external dimmer.

• Samsung LED

• Options: Switching Dimmable (100%/50%/25%/12%)
   or Non- Switching Dimmable

Power consumption up to 12W.

Lens: Clear or Frosted

Input Voltage: 90 -264 V AC

Colour: 3000K (warm white) or 6000K (white)

CRI: 80 (warm white), 75 (white)

Flux: 550 lumens (ww) , 700 lumens (w)

Illuminance at 1m:  352 lux (ww clear lens),  405 lux (w clear lens)

Beam angle: 55 deg or 120 deg

Base: E26 / E27

Dimension: 98mm (diameter) x 130mm (length)

Weight: 250g

• CE, FCC, ETL and RoHS Approved

• Replacement for 75W PAR Halogen lamps or bulbs

• Application: accent lighting, commercial lighting, spotlighting,  etc.

• Brand: FZLED

• 2 Years Warranty

• Product of Taiwan



2) VTX PAR 30 PLUS

VTX PAR 30 PLUS uses CREE LED with high CRI and good heat dissipation design.

• CREE LED

Power consumption: 13W

Input Voltage: 100-240V AC

Colour: 3000K (warm white) or 6000K (white)

Flux: 540 lumens (ww) , 700 lumens (w)

Illuminance at 1 m: 4000 lux (10 deg, ww), 5800 lux (10deg, w)

                                   1900 lux (30 deg, ww), 2300 lux (30 deg, w)

Beam angle: 10 deg or 30 deg

Base: E26 / E27

Dimension: 95mm (diameter) x 90mm (length)

Weight: 140g

• CE, RoHS and UL  Approved

• Replacement for 75W PAR Halogen lamps or bulbs

• Application: accent lighting, commercial lighting, spotlighting,  etc.

• 2 Years Warranty

• Product of Taiwan



PAR38 LED

1) FZLED PAR 38

FZLED PAR 38 is stylishly designed and can be used on its own without the need for fixtures. It comes with an option of switching dimmable function which eliminate the need for an external dimmer.

• SamsungLED

• Non Dimmable

Power consumption up to 22.5 W

Lens: Clear or Frosted

Input Voltage: 90 -264 V AC

Colour: 3000K (warm white) or 6000K (white)

CRI: 80 (warm white), 75 (white)

Flux: 1200 lumens (ww), 1400 lumens (w)

Illuminance at 1m:

   385 lux (ww clear lens, 488 lux (w clear lens)

Beam angle: 120 deg

Base: E26 / E27

Dimension: 125mm (diameter) x 160mm (length)

Weight: 505g

• CE, FCC, ETL and RoHS Approved

• Replacement for 120W PAR Halogen lamps or bulbs

• Application: accent lighting, commercial lighting, spotlighting, etc.

• Brand: FZLED

• 2 Years Warranty

• Product of Taiwan



2) VTX PAR 38 PLUS

VTX PAR 38 PLUS uses CREE LED with high CRI and good heat dissipation design.

• CREELED

Power consumption: 18W

Input Voltage: 100-240V AC

Colour: 3000K (warm white) or 6000K (white)

CRI: 80 (ww), 70 (w)

Flux: 600 lumens (ww) , 800 lumens (w)

Illuminance at 1m: 2800 lux (warm white),  3800 lux (white)

Beam angle:  30 deg

Base: E26 / E27

Dimension: 120mm (diameter) x 135mm (length)

Weight: 240g

• CE, RoHS and UL  Approved

• Replacement for 120W PAR Halogen lamps or bulbs

• Application: accent lighting, commercial lighting, spotlighting, etc.

• 2 Years Warranty

• Product of Taiwan



LED Candle Lights

When lighted up, our LED candle lamps look very much like traditional incandescent candle lamps. This allows consumers to enjoy all the benefits of LEDs without compromising on the appearance and quality of the light.

• LED: LG

• Non-Dimmable or Triac dimmable

Power consumption up to 3.5W

Glass colour: Clear, Frosted or Milky

Input Voltage: 110/ 220 V AC

Colour: 2700K or 6500 K

CRI: 80 (LG LED) , 85 (osram LED also available)

Flux: 180 lumens

Main materials: Aluminium and glass

Base: E14 / E27

Dimension for dimmable bulb: 35mm (diameter) x 117mm (length)

Dimension for non-dimmable bulb: 35mm (diameter) x 104mm (length)

• CE and RoHS Approved

• Replacement for traditional candle lamps

• Application:chandeliers, commercial decorative lighting, etc.

• 2 Years Warranty

• Product of China





LED 2.5W Capsule - Philips

PHILIPS 12V MASTER LED 2.5W Capsule offers naturally warm light with only 2.5W power consumption, ensuring the biggest energy saving and lowest maintenance cost. With PHILIPS' patented solution, it guarantees the broadest possible compatibility with standard 12V Halogen electronic transformers.

PHILIPS 12V MASTER LED 2.5W Capsule is a direct replacement of traditional G4 capsules used in different types of modern fixture and chandeliers.

Design Highlights:

* Up to 80% energy saving compared to standard halogen lamps

* Long lifetime of 35,000 hours (B50, L70)

Patented intelligent driver (enables broad compatibility with existing electronic halogen

   transformers)

* Retrofits into most of G4 fixtures

* Removable lens design

* CCT: 2700K

* RoHS compliant

Application:

PHILIPS MASTER LED 2.5W Capsule is designed with a removable top lens which allows you to DIY the light effect you want. It can create a sparkling effect with the top lens or deliver a spot effect when the top lens is removed.

• Operating temperature range is between -20°C and 45°C ambient

• For  indoor application and fixtures with G4 lamp-holders that offer sufficient space (10mm free air space)

• Not intended for use with emergency light fixtures or exit lights

• For use in fixtures that can structurally support a lamp weighing 20 gram

Suitable for use in Chandeliers / modern fixtures





Award-Winning Otali Sapphire Led Bulb - 10W

Otali Sapphire Led Bulb-10W won the following awards:

* Gold Medal at the International Warsaw Invention Show 2012

* Gold Medal at the Germany Nurenberg International Invention Exhibition 2012

* Silver Medal at the National Invention and Creation Award 2012


gold medals at 2012 Germany Nuremberg International Invention Exhibition


Its unique features include:

* super wide angle of 270 deg (versus others 180 deg)

* high brightness up to 900 lumens

* extended fin design for effective cooling

* light guide plate design offering better eye protection

* adequate insulation to prevent electric shock



• Power consumption: 10W

• Lens: Frosted

• Input Voltage: 100 -240V AC

• Colour: 2800K (warm white) or 5300K (white)

• CRI: >70

• Flux: 720 lumens (ww), 900 lumens (w)

• Beam angle: 270 deg

• Base: E27

• Dimension: 64.4mm (diameter) x 134.1mm (length); Weight: 140g

• CE, RoHS and SGS Approved

• Replacement for E27 based traditional lamps

• Application:work, dining, living area, etc.

• Brand: Otali

• Non- Dimmable

• 1.5 Years Warranty

 • Product of Taiwan





FZLED Bulb

FZLED Bulb uses high quality CREE or Samsung LED and produces satisfactory brightness for replacement of up to 60 W halogen PAR light or bulb.

• Samsung or CREE LED

• Non- Dimmable or Triac dimmable

Power consumption up to 7W or 9W

Lens: Frosted

Input Voltage: 100 -264V AC

Colour: 3000K (warm white) or 6000K (white)

CRI: 80 (warm white), 75 (white)

Flux: 300 lumens (ww samsung 7W), 400 lumens (w samsung 7W)

            380 lumens (ww CREE 7W),  450 lumens (w CREE 7W)

            400 lumens (ww samsung 9W), 500 lumens (w samsung 9W)

Illuminance at 1m:  51 lux (ww samsung 7W),  82 lux (w samsung 7W)

                                   165 lux (ww samsung 9W)

Beam angle: 120 deg

Base: E26 / E27

Dimension for 7W Bulb: 63mm (diameter) x 115mm (length); Weight: 130g

Dimension for 9W Bulb: 63mm (diameter) x 120mm (length); Weight: 150g

• CE, FCC, ETL and RoHS Approved

• Replacement for PAR Halogen lamps or bulbs

• Application:work, dining, living area,  etc.

• Brand: FZLED

• 2 Years Warranty

• Product of Taiwan



LED Wall Lights



Our LED Wall Lights, which use Nichia LEDs emit high-quality and consistent lights to create a warm and cosy ambience.



1) VTX 3004




2) VTX 3006





3) VTX 3007

IP rating: 54

Warranty: 2 years





LED PLC Lamps

Our LED PLC lamp uses high-quality LED from Korea and produces exceptionally bright light for replacement of traditonal PLC lamp.

• For placement horizontally onto fixtures, not suitable for vertical placement

SMD LED from LG Korea

• Power: 6W or 8W

Colour: 2,800 to 3,200K (warm white)

               3,800 to 4,200K (natural white)

               6,000 to 6,500K (white)

Color rendering index: 75 (6W) , 80 (8W)

Flux: 377 lm (ww 6W), 483 lm (ww 8W)

            431 lm (w 6W), 540 lm (w 8W)

Beam angle: 140 deg

Base: G24D and G24Q

Fixture color: silver sand

Length: 146mm (6W) , 157mm (8W)

Input Voltage: 85 to 260V AC

• CE and RoHS approved

• Replacement of traditional PLC lamps (6W LED replacing 13W traditional, and 8W LED replacing 18W traditional)

• Application: commercial lighting and general lighting

• 18 months Warranty

• Product of China



LED Downlights

FZLED Downlight has an ultra slim design. It uses an innovative light guide technology which direct part of the light to the sides, creating a more pleasant and even light output. Available in 2, 3, 4, 6 and 8-inch versions.



1) 2-inch LED Downlight

• Liteon LED

• Power consumption up to 4.5W

• AC100 - 240V

• Power Factor>0.95

• Long life time>20,000 hours

• CE, FCC and UL Approved (Driver)

• Product of Taiwan

• 2 Years Warranty

FZL-DL02-00-05 Series

Model

FZL-DL02-00-WW-05

FZL-DL02-00-NW-05

FZL-DL02-00-CW-05

LED
Liteon low power led
Housing
Al.+ SECC+PMMA
Power Consumption
4.5W
LED No.
40 Pcs

Input Voltage

AC 100 — 240V

Input Frequency
50 — 60 Hz
Operation Temperature
-20°C — +40°C
CCT
3000K
4000K
6000K
Luminous Flux (lm)
210 (±10%)
250 (±10%)
300 (±10%)
CRI
>80
>80
>75
Beam Angle
120°
Dimension

Ø83 X 34 (mm)

Net. Weight (Kgs)
0.17 (Kgs) with driver

Dimmable


Dimmable/ Non-dimmable

Ceiling drill hole: 68 ~ 75mm



2) 3-inch LED Downlight

• Liteon LED

• Power consumption up to 8W

• AC100 - 240V

• Power Factor>0.95

• Long life time>20,000 hours

• CE, FCC and UL Approved (Driver)

• Product of Taiwan

• 2 Years Warranty

FZL-DL03-00-08 Series

Model

FZL-DL03-00-WW-08

FZL-DL03-00-NW-08

FZL-DL03-00-CW-08

LED
Liteon low power led
Housing
Al.+ SECC+PMMA
Power Consumption
8W
LED No.
70 Pcs

Input Voltage

AC 100 — 240V

Input Frequency
50 — 60 Hz
Operation Temperature
-20°C — +40°C
CCT
3000K
4000K
6000K
Luminous Flux (lm)
330 (±10%)
400 (±10%)
480 (±10%)
CRI
>80
>80
>75
Beam Angle
120°
Dimension

Ø102 X 32 (mm)

Net. Weight (Kgs)
0.38 (Kgs) with driver

Dimmable

Dimmable/ Non-dimmable

Ceiling drill hole: 90 ~ 95mm



3) 4-inch LED Downlight

• Liteon LED

• Power consumption up to 9W

• AC100 - 240V

• Power Factor>0.95

• Long life time>20,000 hours

• CE, FCC and UL Approved (Driver)

• Product of Taiwan

• 2 Years Warranty

FZL-DL04-00-0 9Series

Model

FZL-DL04-00-WW-09

FZL-DL04-00-NW-09

FZL-DL04-00-CW-09

LED
Liteon low power led
Housing
Al.+ SECC+PMMA
Power Consumption
9W
LED No.
80 Pcs

Input Voltage

AC 100 — 240V

Input Frequency
50 — 60 Hz
Operation Temperature
-20°C — +40°C
CCT
3000K
4000K
6000K
Luminous Flux (lm)
400 (±10%)
470 (±10%)
560 (±10%)
CRI
>80
>80
>75
Beam Angle
120°
Dimension

Ø120 X 33.5 (mm)

Net. Weight (Kgs)
0.48 (Kgs) with driver

Dimmable

Dimmable/ Non-dimmable

Ceiling drill hole: 100 ~ 110mm



4) 6-inch LED Downlight

• Liteon LED

• Power consumption up to 12W

• AC100 - 240V

• Power Factor>0.95

• Long life time>20,000 hours

• Illuminance at 1m: 200 lux (cool white)

• Replacement for 22W circular fluorescent tube

• CE, FCC and UL Approved (Driver)

• Product of Taiwan

• 2 Years Warranty

FZL-DL06-00-12 Series

Model
FZL-DL06-00-WW-12

FZL-DL06-00-NW-12

FZL-DL06-00-CW-12
LED
Liteon low power led
Housing
Al.+ SECC+PMMA
Power Consumption
12W
LED No.
100 Pcs
Input Voltage

AC 100 — 240V

Input Frequency
50 — 60 Hz
Operation Temperature
-20°C — +40°C
CCT
3000K
4000K
6000K
Luminous Flux (lm)
600 (±10%)
620 (±10%)
750 (±10%)
CRI
>80
>80
>75
Beam Angle
120°
Dimension

Ø180 X 18 (mm)

Net. Weight (Kgs)
0.46 (Kgs) with driver
Dimmable (Switching)
Dimmable/ Non-dimmable

Ceiling drill hole: 165mm

FZL-DL06-01-12 Series

Model
FZL-DL06-01-WW-12

FZL-DL06-01-NW-12

FZL-DL06-01-CW-12
LED
Liteon low power led
Housing
Al.+ SECC+PMMA
Power Consumption
12W
LED No.
100 Pcs
Input Voltage

AC 100 — 240V

Input Frequency
50 — 60 Hz
Operation Temperature
-20°C — +40°C
CCT
3000K
4000K
6000K
Luminous Flux (lm)
600 (±10%)
620 (±10%)
750 (±10%)
CRI
>80
>80
>75
Beam Angle
120°
Dimension

Ø160 X 31 (mm)

Net. Weight (Kgs)
0.48 (Kgs) with driver
Dimmable (Switching)
Dimmable/ Non-dimmable

Ceiling drill hole: 150mm



5) 8-inch LED Downlight

• Liteon LED

• Power consumption up to 22W

• AC100 - 240V

• Power Factor>0.95

• Long life time>20,000 hours

• Replacement for 40W circular fluorescent tube

• CE, FCC and UL Approved (Driver)

• Product of Taiwan

FZL-DL08-00-22 Series

Model
FZL-DL08-00-WW-22

FZL-DL08-00-NW-22

FZL-DL08-00-CW-22
LED
Liteon low power led
Housing
Al.+ SECC+PMMA
Power Consumption
22W
LED No.
192 Pcs
Input Voltage

AC 100 — 240V

Input Frequency
50 — 60 Hz
Operation Temperature
-20°C — +40°C
CCT
3000K
4000K
6000K
Luminous Flux (lm)
1150 (±10%)
1200 (±10%)
1400 (±10%)
CRI
>80
>80
>75
Beam Angle
120°
Dimension

Ø240 X 18 (mm)

Net. Weight (Kgs)
0.66 (Kgs) with driver
Dimmable
Dimmable/ Non-dimmable

Ceiling drill hole: 230mm



FZLED Panel Light

FZLED Panel Light  is the perfect replacement for fluorescent tubes commonly used in large spaces such as  offices, libraries and showrooms.  It comes in two dimensions - 60 cm length (approx. 2ft) and 120 cm length (approx. 4ft). By suspending the lights wth four steel cables, the lights can be brought nearer to the area that need to be illuminated. The panel lights are ultra-slim (13mm) and give out glare free and even lights.

• Liteon LED                                                           FZLED offers its panel Lights in various configurations with CCT from 3000K to 6000K, TRIAC-dimmable or non-dimmable

• Power consumption up to 52W

• AC 100 - 240V

• Power Factor > 0.9

• Long life time >35,000 hours

• CE Approved

• Product of Taiwan

• 2 Years Warranty







FZLED 60-cm Panel Light



Model
FZL-PL60-00-WW-52

FZL-PL60-00-NW-52

FZL-PL60-00-CW-52
 LED
Liteon low power led
 Power Consumption
52W
 Input Voltage

AC 100 — 240V

 Input Frequency
50 — 60 Hz
 Operation Temperature
-20°C — +40°C
 CCT
3000K
4000K
6000K
 Luminous Flux (lm)
2400 (±10%)
2500 (±10%)
3500 (±10%)
 CRI
>80
>80
>75
 Beam Angle
120°
 Dimension

595 X 595 X 13 (mm)

 Net. Weight (Kgs)
5 (Kgs) with driver
 Dimmable
 Dimmable/ Non-dimmable





FZLED 120-cm Panel Light



Model
FZL-PL120-00-WW-52

FZL-PL120-00-NW-52

FZL-PL120-00-CW-52
 LED
Liteon low power led
 Power Consumption
52W
 Input Voltage

AC 100 — 240V

 Input Frequency
50 — 60 Hz
 Operation Temperature
-20°C — +40°C
 CCT
3000K
4000K
6000K
 Luminous Flux (lm)
2400 (±10%)
2500 (±10%)
3500 (±10%)
 CRI
>80
>80
>75
 Beam Angle
120°
 Dimension

295 X 1195 X 13 (mm)

 Net. Weight (Kgs)
5.2 (Kgs) with driver
 Dimmable
 Dimmable/ Non-dimmable





LED Outdoor Floodlights

1) VTX Outdoor Floodlights 20W & 36W

• Waterproof with IP65

• World leading high efficiency LED inside (>100lm/W Cree Xlamp X-PE)

Power consumption: 20W or 36W

Input Voltage: 90-264 V AC / 12 V or 24 V DC

Colour: 2700 - 3050 K (warm white) or 5700 - 6350 K (day white)

CRI: 80 (warm white), 75 (day white)

Beam angle: 8 deg, 22 deg, 42 deg, 120 deg

Flux for 20W: 840 lumens (ww),  1050 lumens (dw)

   Flux for 36W: 1500 lumens (ww), 2000 lumens(dw)

Illuminance at 2m (for 36W version):

warm white:  7950 lux (8 deg),  1790 lux (22 deg), 640 lux (42 deg),  120 lux (120 deg)

day white:     10400 lux (8 deg), 2350 lux (22 deg), 840 lux (42 deg),  160 lux (120 deg)

Dimension  (20W): 200mm (length) x 135mm (breadth) x 52mm (thickness)

                      (36W): 197mm (length) x 140mm (breadth) x 94mm (thickness)

Weight: 1.2kg (for 20W);  1.8kg (for 36W)

• Reliable thermal solution, constant current driving and short/over-voltage protection

• CE and RoHS certified

• Replacement for metal halide and halogen flood lamps

• Application: flooding/spotlight for buildings, billboard, street, garden, wall washing, etc.

• 2 Years Warranty

• Product of Taiwan



2) VTX Outdoor Floodlight 45W

• Waterproof with IP65

• LED light source: LED Semiconductor SCOB

Power consumption: 45W

Input Voltage: 100-240 V AC  50-60 Hz

Colour: 2000K, 3000K or 6000K

CRI: 70 (2000K), 70 (3000K), 75 (6000K)

Beam angle: 120 deg

Flux: 1800 lumens (2000K), 2000 lumens (3000K), 2500 lumens (6000K)

Illuminance at 1m: 300 lux (2000K), 400 lux (3000K), 460 lux (6000K)

Illuminance at 2m: 100 lux (2000K), 120 lux (3000K), 130 lux (6000K)

Illuminance at 3m:   50 lux (2000K),    65 lux (3000K),  70 lux (6000K)

Illuminance at 4m:   30 lux (2000K),    40 lux (3000K),  45 lux (6000K)

Illuminance at 5m:   20 lux (2000K),    30 lux (3000K),  30 lux (6000K)

Dimension: 230mm (length) x 190mm (breadth) x 130mm (thickness)

Weight: 2.4kg

• Replacement for metal halide and halogen flood lamps

• Application: flooding/spotlight for buildings, billboard, street, garden, wall washing, etc.

• 2 Years Warranty

• Product of Taiwan





LED Outdoor Spotlights

Our outdoor spotlights can be installed easily and are suitable for lighting up gardens and lawns.

1) VTX Outdoor Spotlight 5W

Input Voltage: DC/12V                                                LED Garden Lamps - LSK403WBB0

Isolation Constant Current Driver: 350mA

LED: 1.12W * 3 (Prolight)

Total Power Consumption: 5W

Color Temperature: 2700k/ 3000K/ 6000k

Luminous flux: 255lm /285lm /315lm

Beam Angle: 15°,25°,  50°

CRI: 2700K≧80; 3000K≧80; 6000K≧75

Dimension: ψ94*230

IP: IP66

Application: garden, lawn, etc.

Warranty: 1 year

Product of Taiwan



2) VTX Outdoor Spotlight 9.8W

Input Voltage: 100VAC - 240VAC            LED Garden Light - LSK407WBB1

Isolation Constant Current Driver: 350mA

LED: 1.12W * 7 (Prolight)

Total Power Consumption: 9.8W

Color Temperature: 2700k/ 3000K/ 6000k

Luminous flux: 595lm /665lm /735lm

Beam Angle: 15°,25°, 50°

CRI: 2700K≧80; 3000K≧80; 6000K≧75

Dimension: ψ96*360

IP: IP66

Application: garden, lawn, etc.

Warranty: 1 year

Product of Taiwan



3) VTX Outdoor PAR 38 Spotlight 15W (one- eye)

Input Voltage: 90- 260 V AC

LED: JMK COB Taiwan

Max Power Consumption: 16.5W

Color Temperature: 3000K/ 4000K/  6000K

Luminous flux: 900 lm / 1000 lm /1100 lm

Lux @ 1m: 511 lux (6000K)

Lux @ 2m: 127 lux (6000K)

Beam Angle: 90°

CRI: 3000K>80; 4000K>80; 6000K>70

Dimension: ψ125mm * 134.5 mm

IP: IP65

Approval: CE, IP65 by SGS

Application: garden, lawn, etc.

Warranty: 2 years

Product of Taiwan



LED Street Lights/ High Bay Lights

To-date, more than 10 000 of our high-quality CREE LED Street Lights have been installed in Taiwan.

Outstanding Features:

* Streetlights can be converted to high/low bay lights with brackets

* Higher illumination output than others

* IP67 vs others IP65

* Lightweight - approximately same weight as traditional lights, and can even float on water.

* External independent driver and not integrated with the lamp. Easy trouble shooting and maintenance. Driver can be mounted at easily accessible location.

* Robust design and not easily affected by harsh environment like wind, dust, rain, heat (up to 65 C) or snow (up to -40 C).

* Lampshade material is solid and with anti-UV treatment. Curvy design to cover wide area with wide viewing angle, therefore less glaring. Uniform radiation pattern. Pleasant to the eyes.



LED type: CREE / NICHIA high power white light chip

Power Supply: Meanwell

Power Consumption: 30W, 60W, 80W, 100W, 120W, 150W, 180W, 200W

Color Temperature :

Luminous flux, central illuminance and beam width:

1896Lm ± 10%       44 lux @ 4m               17m x 6m     (30W)

                               28 lux @ 5m               21m x 7m

                               20 lux @ 6m               26m x 8m

3670Lm ± 10%       53 lux @  6m              21m x 10m   (60W)

                               39 lux @ 7m               24m x 12m

                               30 lux @ 8m               28m x 13m

4900Lm ± 10%       68 lux @ 6m               21m x 10m   (80W)

                               50 lux @ 7m               24m x 12m

                               38 lux @ 8m               28m x 13m

6400Lm ± 10%       53 lux @ 8m               28m x 13m   (100W)

                               42 lux @ 9m               31m x 15m

                               34 lux @ 10m             35m x 17m

7065Lm ± 10%       59 lux @ 8m               28m x 13m   (120W)

                               47 lux @ 9m               31m x 15m

                               38 lux @ 10m             35m x 17m

10,900Lm ± 10%    66 lux @ 8m               28m x 13m   (150W)

                               52 lux @ 9m               31m x 15m

                               42 lux @ 10m             35m x 17m

11,710Lm ± 10%    56 lux @ 10m             35m x 17m   (180W)

                               46 lux @ 11m             38m x 18m

                               39 lux @ 12m             42m x 20m

15,834Lm ± 10%    62 lux @ 10m             35m x 17m   (200W)

                               51 lux @ 11m             38m x 18m

                               43 lux @ 12m             42m x 20m

Luminous Efficiency: 107Lm/w

Colour Temperature: 6000K ± 1000K

Lamp Dimension :

Lamp Dimension and Net Weight: 400*198*101 mm, 3.3kg  (30W)

                                                        565*198*101 mm, 4.6kg  (60W)

                                                        665*198*101 mm, 5.4kg  (80W, 100W, 120W)

                                                        850*198*101 mm, 6.9kg  (150W, 180W, 200W)

Lamp shape:

Lamp Shade material: JME003 Aluminum Alloy, anti-UV, resin moulding, matte

Voltage: 100-240VAC

Frequency: 50Hz/60Hz

Ambient Temperature: -40~+55 deg C

CRI: >70

Uniformity: 0.4

IP Level: IP 67

Lamp lifetime: >50000Hrs

CE, UL and CNS 15233 approved

Designed and manufactured in Taiwan

Applications: High-bay / Wall-washer / Parking light / Tunnel light / Projection light / Petrol station light, etc

Power Consumption :
30W
Color Temperature :
6000K ± 1000K
Luminous Flux :
1896Lm ± 10%

Warranty: 2 years



30W
Color Temperature :
6000K ± 1000K
Luminous Flux :
1896Lm ± 10%
Luminous Efficiency :
107Lm/W
Lamp Dimension :
400*198*101mm
Net Weight :
3.3 kg



LED Strip Light

We offer a wide variety of LED strip lights to cater to different applications.

LED type: SMD 3528 or 5050

Input Voltage: 12V DC

LED quantity: 30 leds/m  or 60 leds/m

Colours: white or warm white (other colours available upon request)

Waterproof/ Non waterproof

Application: cove lighting, feature wall, task and display lighting



LED Task Light with Gooseneck arm

Our LED Task Light is mainly for industrial use. It can be customised to suit various applications and is very competitively priced.

• LED Task Lamp with swivel joint and flexible gooseneck dust-proof arm.

Ideal for equipment such as:

test machines,

saw-cutting machines,

drill press,

engraving machines, and

work benches.

• Product of Taiwan





LED Bicycle Light



FZLED Bicycle Light 1W

• Up to 20 hours

• LED: 1 piece 1W Nichia cool white, 70 Lumens

• Water resistant / shock proof

» Long lifetime up to 35000 hours (LED)
» Power consumption: 1W
» Operation temperature (for LED): -20 ~ +50 °C
» Net weight (include bracket): 0.115 (±10%) kgs
» Aluminum 6463 T6 (aircraft grade)
» Illumination up to 50~100 m
» High brightness (up to 2240 lux at 1m)
» No heat, No UV, or IR light radiation
» Lead-free, Mercury-free
» Dimension : dia 25 x 25 mm x 110 mm L
» Optic: use convex lens to focus light beam
» Function: Push On/Blinking/Off swicth on tail cap
» Accessory: bicycle bracket (nylon + fiber, metal parts)
» Power: 3 x AAA battery (Not included )

• CE Approved

• Product of Taiwan



FZLED Bicycle Light 3W



• Up to 10 hours
• LED: 1 piece 3W Lumileds superbright white Rebel70, 140~150 Lumens

• Water resistant / shock proof

» Long lifetime up to 50000 hours (LED) » Power consumption: 3W
» Operation temperature (for LED): -20 ~ +50 °C
» Net weight (include bracket): 0.150 (±10%) kgs
» Aluminum 6463 T6 (aircraft grade)
» Illumination up to 100~200 m
» High brightness (up to 4800 lux at 1m)
» No heat, No UV, or IR light radiation
» Lead-free, Mercury-free
» Optic: use convex lens to focus light beam, Adjusment beam
» Function: Push On/Blinking/Off switch on tail   cap
» Dimension: dia 30 x 100 (L) mm
» Accessory: bicycle bracket (nylon + fiber, metal parts)
» Power: 3 x AAA battery (Not included )















FZLED Bicycle Light 3W with extension (for conversion into a portable torch)



» Input power: Bike Torch: 3 x AAA batteries (up to 10 hrs estimated run time when using fresh batteries);
                         Portable Torch: 3 x AA batteries (up to 20 hrs estimated run time when using fresh batteries)

• CE Approved

• Product of Taiwan







FZLED Hiking Torch

• Brightness: 200~220 Lumens

• Water resistant / shockproof
• LED: 1 pc 3W CREE XP series cool white LED
• Function: SOS Morse code
• LED battery indicator

»Material: Corrosion resistant (aluminum 6463 T6, aircraft grade)
» Long lifetime up to 35000 hours (LED)
» High brightness (up to 4800 lux at 1m)
» Illumination up to 100 m
» Operation temperature (for LED): -20 ~ +50 °C
» Corrosion resistant
» Optic: use convex lens to focus light beam
» Power: 3 x AAA battery (Not included)
   (up to 22 hrs estimated run time for 30% usage when using fresh batteries)
» Function: Push On/off, (70%/30%/SOS/flash/100%)
» Net weight: 0.130 (±10%) kgs
» Dimension: D38 x 26 x 144 mm

• CE Approved

• Product of Taiwan



FZLED Indoor Torch

• Brightness: 30,000 ~ 50,000 mcd
• Water resistant/shockproof

LED: 1 pc 1W Japan Nichia cool white 5 mm LED

»Material: Corrosion resistant (aluminum 6463 T6, aircraft grade)
» Long lifetime up to 50000 hours (LED)
» Illumination up to 50~100 m
» High brightness (up to 2400 lux at 1m)
» Dimension: D25 x 20 x 154 mm
» Net weight: 0.053(±10%) kgs
» Optic: use convex lens to focus light beam
» Power: 2 x AA batteries
(up to 20 hrs estimated run time when using fresh    batteries)

• CE Approved

• Product of Taiwan



FZLED Security Torch

• Brightness: 160~170 Lumens
• Water resistant/shockproof
• LED: 1 pc 3W Lumileds K2 160 LED

• LED battery indicator

»Material: Corrosion resistant (aluminum 6463 T6, aircraft grade)
» Up to 40 hrs stimated run time when using fresh batteries
» Dimension: D55 x 40 x 315 mm
» High brightness (up to 4800 lux at 1m)
» Long lifetime up to 50000 hours (LED)
» Operation temperature (for LED): -20 ~ +50 °C
» Function: Push On/off, (50%/100%)
» Illumination up to 100~200 m
» High brightness (up to 4800 lux at 1m)
» Power: 3 x A battery (Not included)
» Net weight: 0.408 (±10%) kg

» Available in 2 versions: 315mm length version and 370mm length version

• CE Approved

• Product of Taiwan



FZLED Waterproof / Scuba diving Torch


• Brightness : 160~170 Lumens
• Waterproof (up to 100 m / shock proof)

• LED: 1 pc 3W Lumileds K2 160 LED

» Material: Corrosion resistant (aluminum 6463 T6, aircraft grade)
» Long lifetime up to 35000 hours (LED)
» Illumination up to 100 m
» High brightness (up to 5100 lux at 1m)
» Up  to 15 hours
» Dimension: D38 x 32 x 160 mm
» Net weight: 0.195 (±10%) kgs
» Optic: use convex lens to focus light beam
» Power: 6 x AAA battery (Not included)
» No heat, No UV, or IR light radiation
» Lead-free, Mercury-free
» Function: Rotate On/off

• CE Approved

• Product of Taiwan

FZLED Flexible Work Light



» Working / Factory / Office / Assembly line Torches

• Water resistant/shockproof



LED: 1 piece new Japan Nichia cool white 5 mm LED (1W) or  1 pcs Lumileds 3W LED

• Powerful magnet on the bottom    Flexible tube

» Power consumption: 1W or 3W
» Input power: 3 x AAA batteries (Not included)
   (up to 20 hrs estimated run time when using fresh batteries - for 1W) or

   (up to 15 hrs estimated run time when using fresh batteries - for 3W)
» Long lifetime up to 50000 hours (LED)
» Aluminum 6463 T6 (aircraft grade)
» Illumination up to 50~100 m (1W) or 100-200m (3W)
» High brightness (up to 2400 lux at 1m - for 1W or 4800 lux at 1m - for 3W)

» Operation temperature (for LED): -20 ~ +50 °C
» Optic: using convex lens to focus light beam
» Net weight: 0.192 (±10%) kg- for 1W or 0.292 (±10%) kgs -for 3W
» Dimension: 27(D) x 180(L) mm - for 1W or 35(D) x 180(L) mm - for 3W
» Function: Push On/Off
.» No heat, No UV, or IR light radiation
» Lead-free, Mercury-free

• CE Approved

• Product of Taiwan



 1W flexible torch                   3W flexible torch





FZLED Head Light

FZLED Head Light 1W

• Brightness: 70 Lumens
• Water resistant/shockproof
• LED: 1 pc 1W Nichia cool white LED

• Adjustable angle

» Power consumption: 1W
» Long lifetime up to 50000 hours (LED)
» Illumination up to 50~100 m
» High brightness (up to 2400 lux at 1m)
» Working Time: Up to 25 hours
» Input power: 3 x AA batteries (Not included)
   (up to 25 hrs estimated run time when using fresh batteries)
» Operation temperature (for LED): -20 ~ +50 °C
» Functions: Push On/Off, Strobe, adjust up to 45 degree toward lower side
» Optic: using convex lens to focus light beam
» Net weight: 0.155 (±10%) kgs
» No heat, No UV, or IR light radiation
» Lead-free, Mercury-free
» Material: Plastic

• CE Approved

• Product of Taiwan



FZLED Head Light 3W

• Brightness: 140~150 Lumens
• Water resistant / shockproof
• LED: 1 pcs 3W Lumileds cool white LED
• Adjustable angle

» Power consumption: 3W
» Long lifetime up to 50000 hours (LED)
» Illumination up to 100~200 m
» High brightness (up to 4800 lux at 1m)
» Working Time: Up to 25 hours
» Input power: 3 x AA batteries (Not included)
   (up to 25 hrs estimated run time when using fresh batteries)
» Operation temperature (for LED): -20 ~ +50 °C
» 5 functions: 100% power, 50% power, 30% power, SOS morse code, flash
» Optic: using convex lens to focus light beam
» Net weight: 0.172 (±10%) kgs

• CE Approved

• Product of Taiwan



Motion Sensor LED Light

Our Motion Sensor LED Light uses advanced infrared detection technology and optimally designed circuitry to provide clear, bright lights when needed.



Features

Energy saving, environmentally friendly and  anti-explosive

* Uses advanced infrared detection sensor technology

* Automatic induction

* Well designed, light-weight and portable



Specifications

* Sensor sensitivity distance:  more than 3m

* Sensor sensitivity angle: 120 deg

* Number of LEDs: 10

* Maximum power: 0.5W

* LED life: more than 80 000 hours

* Single lamp brightness: 6-7Lum/ piece,

   light-emitting angle: 120 degrees

* LED Colour Temperature: Pure White 6400-7300K or

                                          Warm White 2800-2950K

* Operating current: 120 mA

* Power supply: 4 AAA batteries or 1.5V rechargeable batteries

* Delay shutdown time: 15 second

* Induction interval: None

* Operating temperature: -5 ° C to 40 ° C

* When fully charged, can light up for 6 hours

* Dimension: 190*30*16mm

* Weight: 100g (excluding batteries)



Installation Method

* Attach with double-sided adhesive tape or fix with screws



Applications

* Doorway, attic, dark room, basement, garage, cellar, wardrobes, cabinets, cupboards, bookcases, hotel wardrobes, safe deposit boxes, tents, car trunk, etc.



Note:

* Because the light sensor is internally installed, it may not work in daytime environment.

* We recommend using high-performance alkaline batteries or rechargeable batteries. Common alkaline battery's capacity is too small and may affect the life and performance of the motion sensor light.

* The operating temperature should be between -5 ° C to 40 ° C, in order for it to work optimally.

* This light is not waterproof. Do not place it outdoor where it is exposed to harsh weather conditions.

* Do not place the sensor light beside a window or any strong light environment.





Award-Winning LED Table Lamp

* LED table lamp with a mushroom-like design

* Awarded the 2008 Red Dot Design Award

* Made of durable materials: ABS and acrylic

* LED quantity: 12 pcs

* Batteries: 3 x AA (Not included)

* Operating time: 36 hours

* Touch on/off switch

 * Colour: White, Silver, Pink, Green

* Product Size: 100mm x 100mm x 202mm

* Made in China
